BMT XH-M604 DIGI BATT CONT 6-60V
Lithium Battery Charge Control Board, 6 TO 60VDC, 30A
Lithium Battery Charge Control Board
Overview

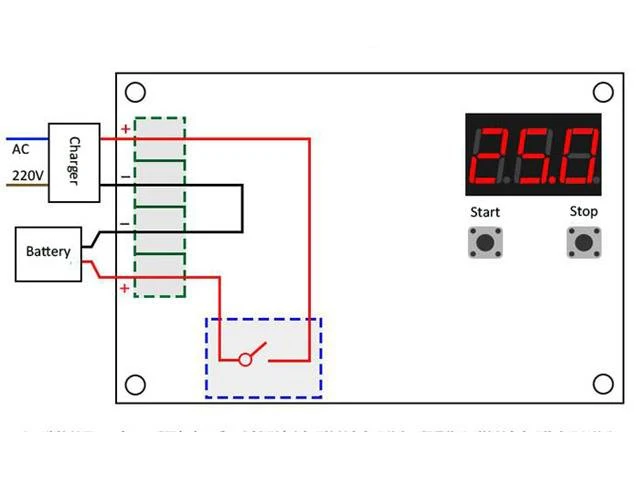

The XH-M604 Charge Module can be used to charge variety of battery types including, lithium, Lead-acid, nickel-cadmium, nickel-metal hydride, lithium-ion and polymer. The module can also be used for solar panel applications
Features
Instructions:

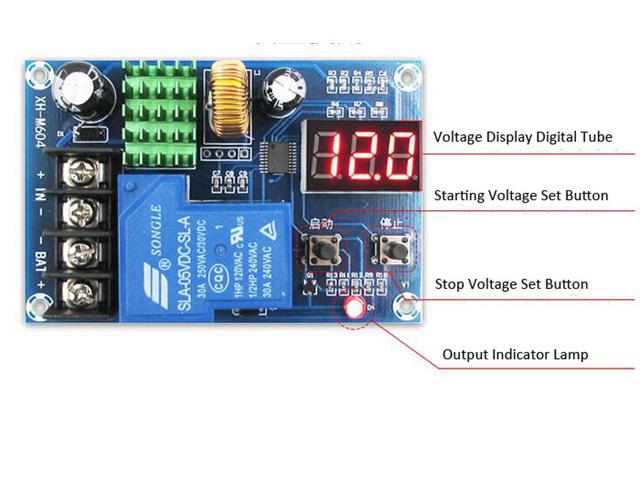

The start button plays the role of the up/increase button, and the stop button acts as the down/decrease button.
How to use:
- Set the startup voltage: under the normal display voltage state, press the start voltage button once to display the start charging voltage. Press and hold the start button for 3 seconds, the digit flashes, and the start charging voltage value is set by the start and stop buttons.
- Set the stop voltage: in the normal display voltage state, press the stop voltage button once to display the stop charging voltage. Long press the stop button for 3 seconds, the digit flashes, and the charging voltage value is stopped by the start and stop buttons.
- Restore factory settings: press and hold the start / stop button at the same time when the power is on, the digital display 888, that means restore the factory settings.
Specifications
- Model: XH-M604
- Voltage: DC 6V-60V
- Output current: 30A
- Display Precision: 0.1V
- Control Precision: 0.1V
- Output Type: direct output
- Voltage Tolerance: ±0.1V
- Application Fields: 12-24V
Additional Information
| Device | Control Board |
| Type | Lithium Battery Charge |
| Videos |
