1598ESGY

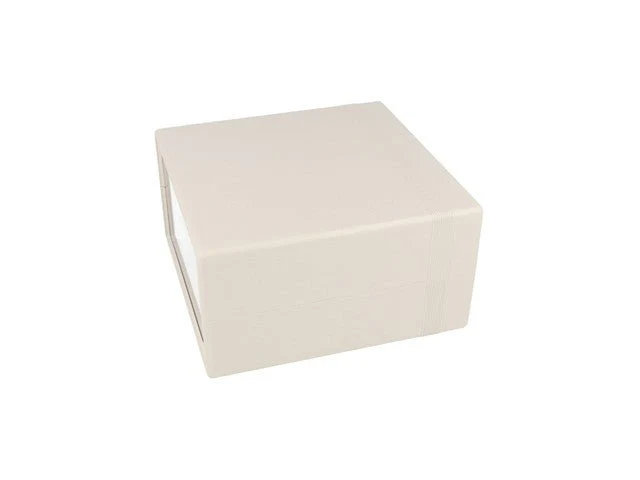

Polystyrene Enclosure 160X160X85 Grey
Polystyrene Plastic Instrument Enclosure
Feature(s)
- Desk top electronic instrument enclosure, ideally suited for mounting printed circuit boards.
- Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
- Designed to meet IP54.
- Two sets of vertical 1.5 mm (0.062”) P.C. board guides are molded into case halves front and rear.
- Front and rear panels are 1.6 mm (0.064”) brushed aluminum with protective paper on one side.
- Enclosure halves are secured with M3 x 0.5” x 10 mm (0.39”) Phillips machine screws threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
- Integral horizontal P.C. card mounts on Eurocard centers.
Specifications
| Size L x W x H | 6.3 in x 6.25 in x 3.35 in (160 mm x 159 mm x 85 mm) |
|---|---|
| Shipping Weight | 0.87 lbs (0.39 kg) |
| Packaging Type | shrink wrap |
| Material | ABS Plastic |
| Color | Light Gray |
| Flame Rating | UL94 HB |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Instrument Case |
| Max. P.C. Board Length (mm) | 143.58 |
| Max. P.C. Board Width (mm) | 148.44 |
Downloads
Additional Information
| Device | Enclosure |
| Type | Polystyrene Plastic | Instrument |
