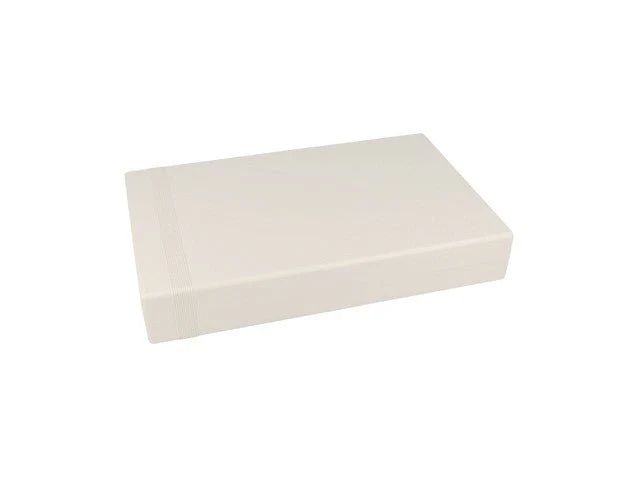

• Desktop electronic instrument enclosure, ideally suited for mounting printed circuit boards.
• Designed to meet IP54.
• Two sets of vertical 1.5 mm (0.062”) PC board guides are molded into front and rear of case halves.
• Integral horizontal PC card mounts on Eurocard centers.
• PC card standoffs molded into top and bottom half of enclosure require #6 x 1/4” (6.4mm) screws, not included. Order part number 1598ATS100.

Standard version

• Stocked in matte textured black and grey.
• Molded from flame retardant ABS plastic which carries a UL flammability rating of 94V-0.
• Enclosure halves are secured with M3 x 0.5” x 10 mm (0.39”) Phillips machine screws threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
• Front and rear panels are 1.6 mm (0.064”) brushed aluminum with protective paper on one side.

Economy Version

• Molded from general purpose ABS plastic (not flame retardant).
• Enclosure halves are secured with self tapping screws threaded into plastic standoffs.  Not recommended for repeated assembly and disassembly.
• Available with either brushed aluminum or black plastic end panels.
