1598JGY

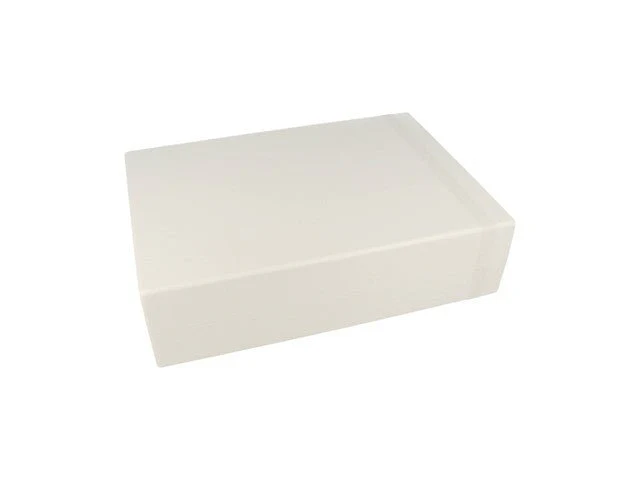

ABS Plastic Grey Enclosure 279 MM X 198 MM X 76 MM
ABS Plastic Grey Enclosure
Feature(s)
- Desktop electronic instrument enclosure, ideally suited for mounting printed circuit boards.
- Designed to meet IP54.
- Two sets of vertical 1.5 mm (0.062”) PC board guides are molded into front and rear of case halves.
- Integral horizontal PC card mounts on Eurocard centers.
- PC card standoffs molded into top and bottom half of enclosure require #6 x 1/4” (6.4mm) screws, not included. Order part number 1598ATS100.
Standard version
- Stocked in matte textured black and grey.
- Molded from flame retardant ABS plastic which carries a UL flammability rating of 94V-0.
- Enclosure halves are secured with M3 x 0.5” x 10 mm (0.39”) Phillips machine screws threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
- Front and rear panels are 1.6 mm (0.064”) brushed aluminum with protective paper on one side.
Economy Version
- Molded from general purpose ABS plastic (not flame retardant).
- Enclosure halves are secured with self tapping screws threaded into plastic standoffs. Not recommended for repeated assembly and disassembly.
- Available with either brushed aluminum or black plastic end panels.
Specifications
| Size L x W x H | 11 in x 7.8 in x 3 in (279 mm x 198 mm x 76 mm) |
|---|---|
| Shipping Weight | 1.64 lbs (0.74 kg) |
| Packaging Type | shrink wrap |
| Material | ABS Plastic |
| Color | Light Gray |
| Flame Rating | UL94 V-0 |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Instrument Case |
| Max. P.C. Board Length (mm) | 184.5 |
| Max. P.C. Board Width (mm) | 268.6 |
Downloads
Additional Information
| Device | Enclosure |
| Type | ABS Plastic | Grey |
